These precision systems are designed specifically to inspect & measure big & heavy parts. They have up to 60” of travel and support loads of up to 300 lbs!
They are ideal for the Industrial Gas Turbine (IGT) / Power Generation market for the inspection of fir trees / root forms on buckets.
Media Category: Digital Optical Comparators
Fir Tree / Root Form Inspection on Buckets – Extended Travel 500 Series VisionGauge® Digital Optical Comparator
This innovative extended-travel configuration is designed to provide optimal rigidity and eliminate any mechanical deflections. Everything is optimized to allow the system to produce highly accurate measurements of long & heavy parts.
These systems are ideal for the IGT and Power Generation markets, such as the measurement and inspection of fir trees and root forms on buckets.

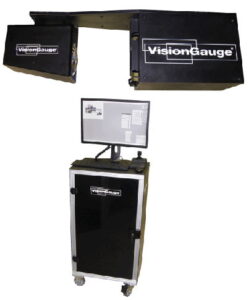

Super-Extended Travel 500 Series Digital Optical Comparator
VG-SIMS_System_and_Cabinet_smaller

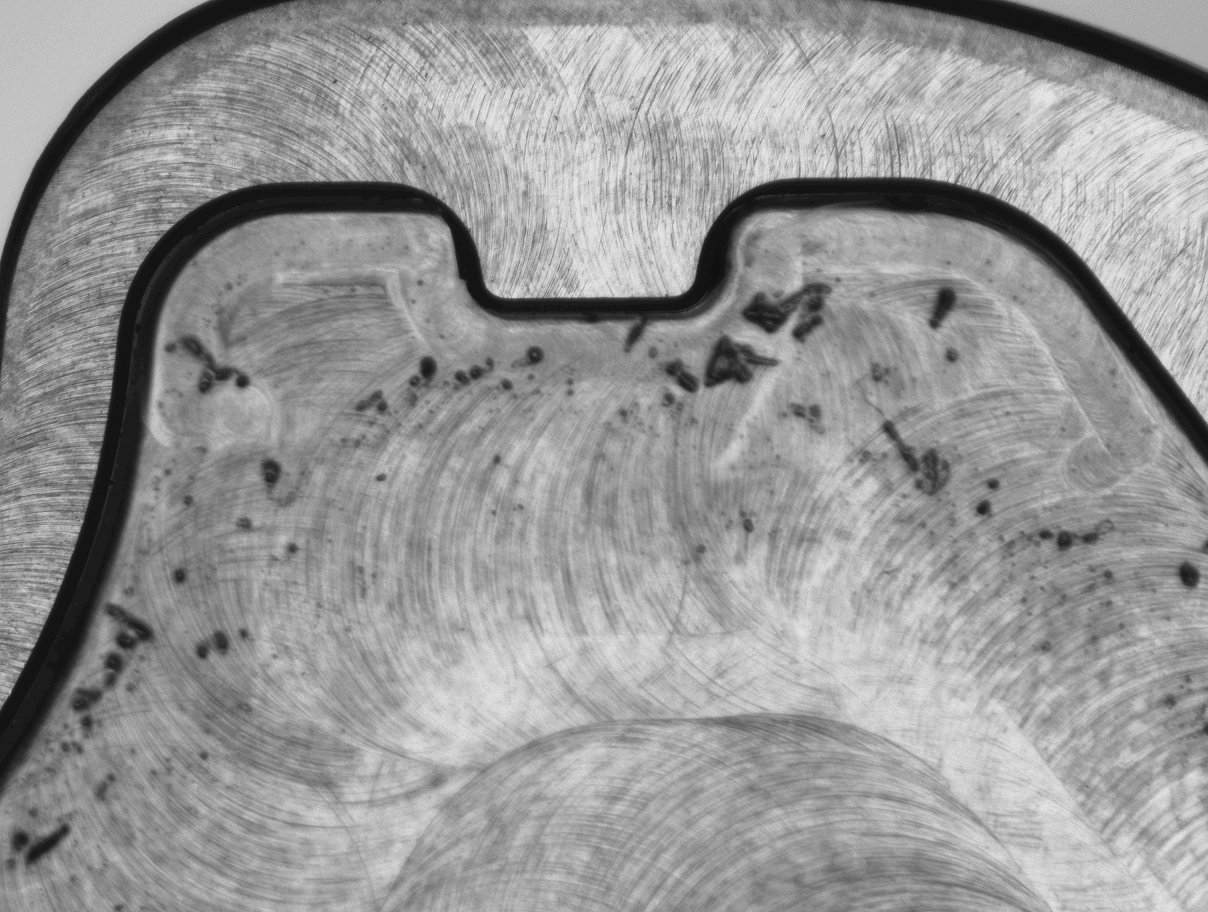

Orthopaedic Tibial Plate Inspection – 50X Coax
Orthopaedic Tibial Plate inspection at 50X magnification with coax illumination on a VisionGauge Digital Optical Comparator

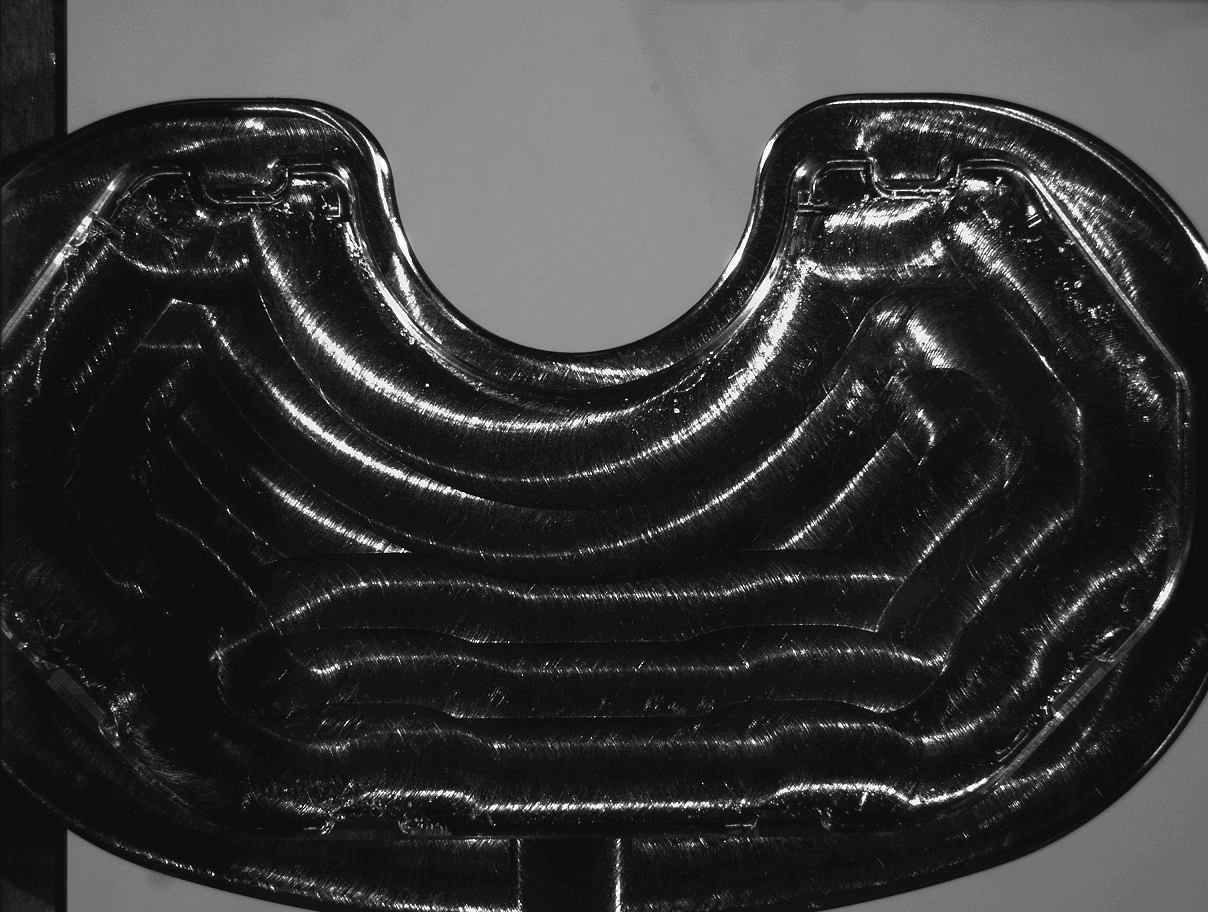

Orthopaedic Tibial Plate Inspection – 10X Regular Illumination
Inspection of an orthopaedic tibial plate at 10x magnification with regular illumination on a VisionGauge Digital Optical Comparator

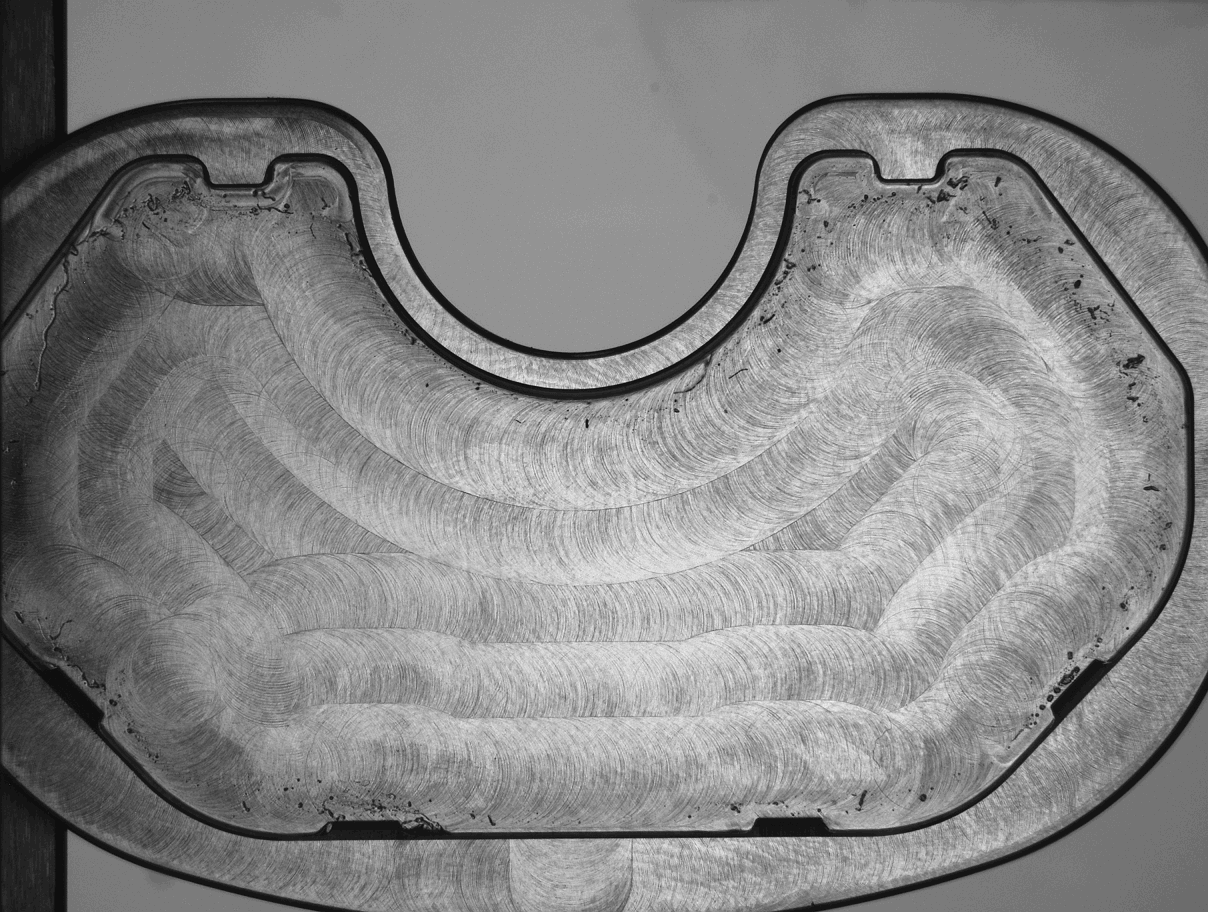

Orthopaedic Tibial Plate Inspection – 10X Coax Illumination
Inspection of an orthopaedic tibial plate performed at 10x magnification on a VisionGauge Digital Optical Comparator with coax illumination.
Turbine_Disk_Inspection_and_Measurement_System
The VisionGauge® Disk Inspection & Measurement System is the ideal solution for the automated high-accuracy inspection & measurement of slots in turbine disks, both large & small.
5X 300-Series Digital Optical Comparator / Field-of-View Systems
The VisionGauge® Digital Optical Comparator 300 Series / Field-of-View Systems are now available in a new 5x configuration.
The 300 Series VisionGauge® Digital Optical Comparators are extremely cost effective Field-of-View
Systems that are ideal to inspect and measure smaller parts, very quickly. And the new 5X
configuration provides a wider field-of-view and a larger depth-of-field that extends the range of parts
that can be checked using the 300 series. Specifically, the new 5X 300 Series machine can
accommodate parts up to 6.4” (diagonal, i.e. 5.5” horizontal x 3.3” vertical) and up to 4” in height. The
new 5X 300 Series VisionGauge® also has a very long working distance that provides 15” of
clearance between the part and the lens.
Supplementary-Monitor
Optional supplementary monitor to automatically display related files, reports and information on VisionGauge® Digital Optical Comparator
