VisionGauge systems are capable of high-accuracy inspection and measurement of precision bearings.
Media Category: Applications
Images related to applications solved with the VisionGauge Digital Optical Comparator
Bearing gap measurements

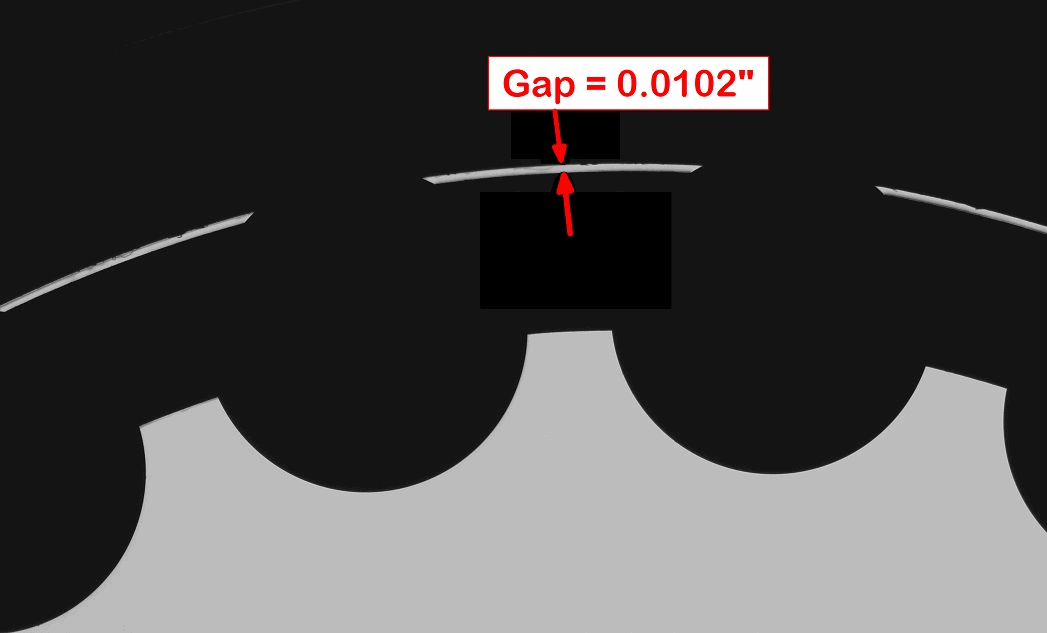

Accurately measure all key characteristics of precision bearings, including roller drop, cage clearance, etc…

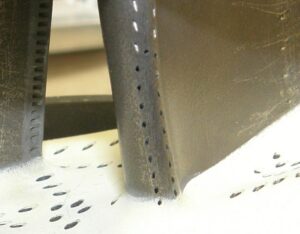

Cooling hole location/detection on coated and un-coated part surfaces
VisionGauge® OnLine software is ideal for locating and inspecting cooling holes on both coated and un-coated parts.

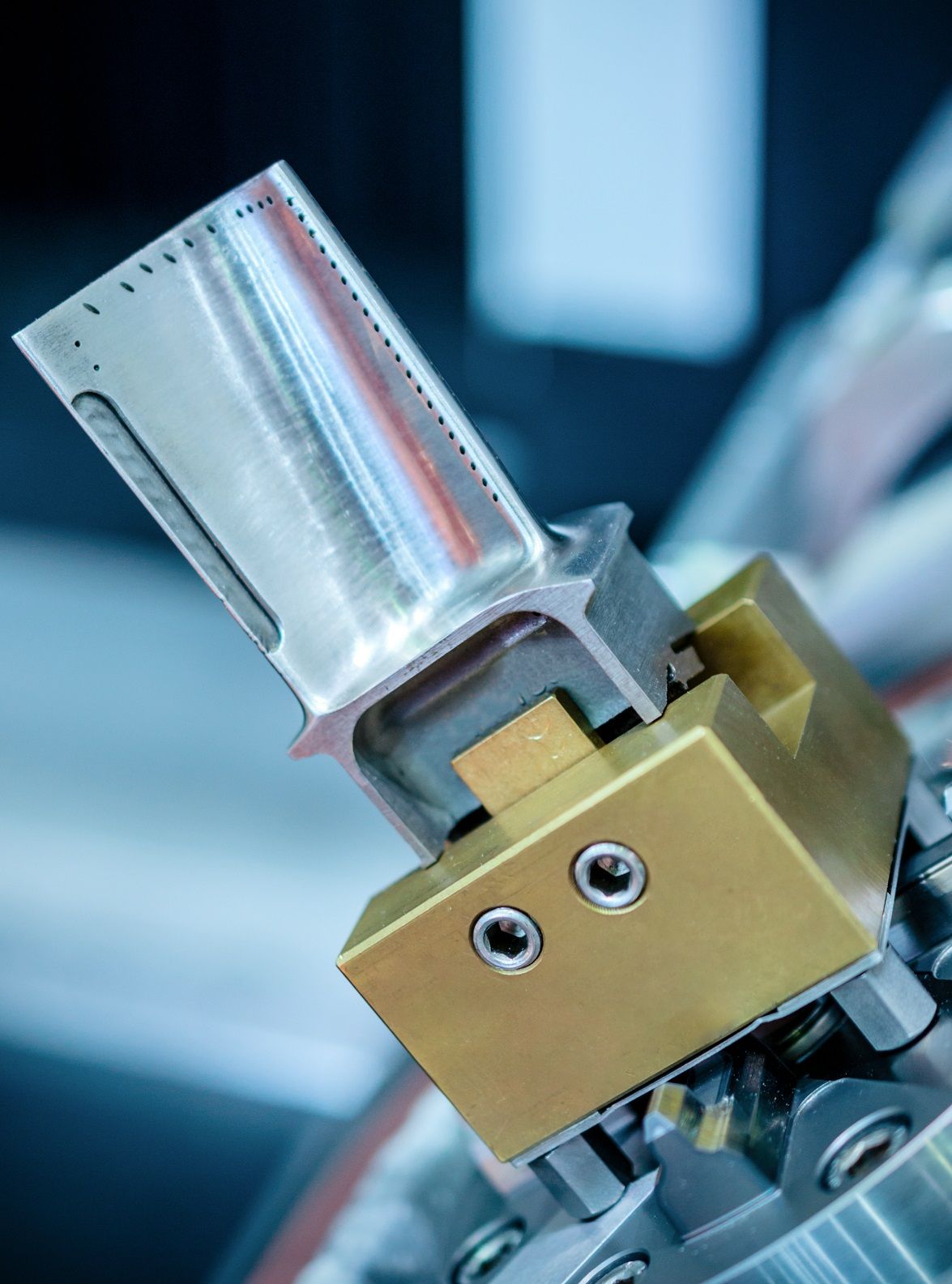

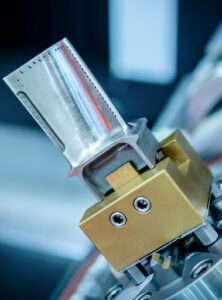

Adapted feature-detection on unique surfaces
VisionGauge® Online’s powerful “adaptive” feature-detection software tools are able to accurately find and locate holes on different surfaces, with different reflectivity, at different viewing angles, etc…

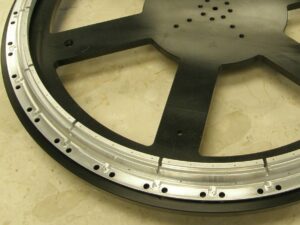

Ring with cooling holes
Cooling Hole Inspection – Verifying Presence, Shape, and Location
Medical Rasp Inspection with a VisionGauge® Digital Optical Comparator
Medical rasps are presented to a VisionGauge® Digital Optical Comparator under repeatable computer controlled illumination conditions for inspection and measurement.
Customize medical rasp inspection
Use VisionGauge® Digital Optical Comparators to customize your automated inspections and measurement based on your application’s criteria. There are multiple ways to solve certain inspection requirements on a single part.
Examples of measurements performed on medical rasps

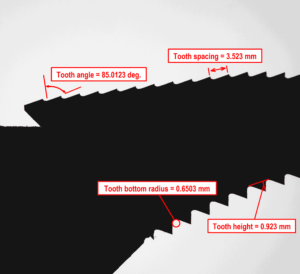

Multiple measurements of all aspects of medical rasps can be automated, including tooth height/depth, tooth spacing, tooth angle, bottom radius, and much more.
Medical rasps inspection with multiple entities verification

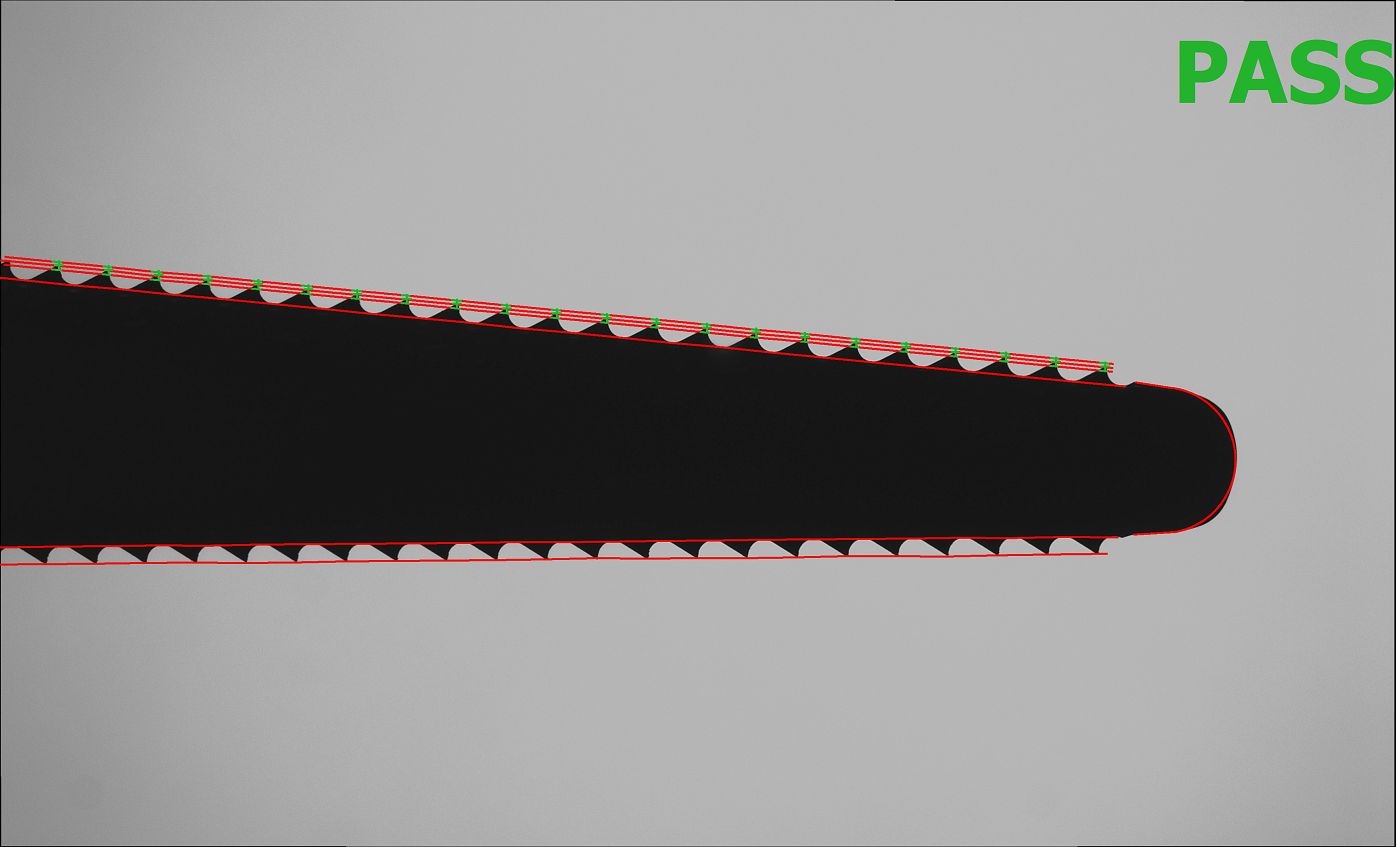

Medical rasps can be inspected in various way with VisionGauge® Digital Optical Comparators live image overlays, including presence/absence verification of the crests and roots of the teeth.
