Media Category: Applications
Images related to applications solved with the VisionGauge Digital Optical Comparator

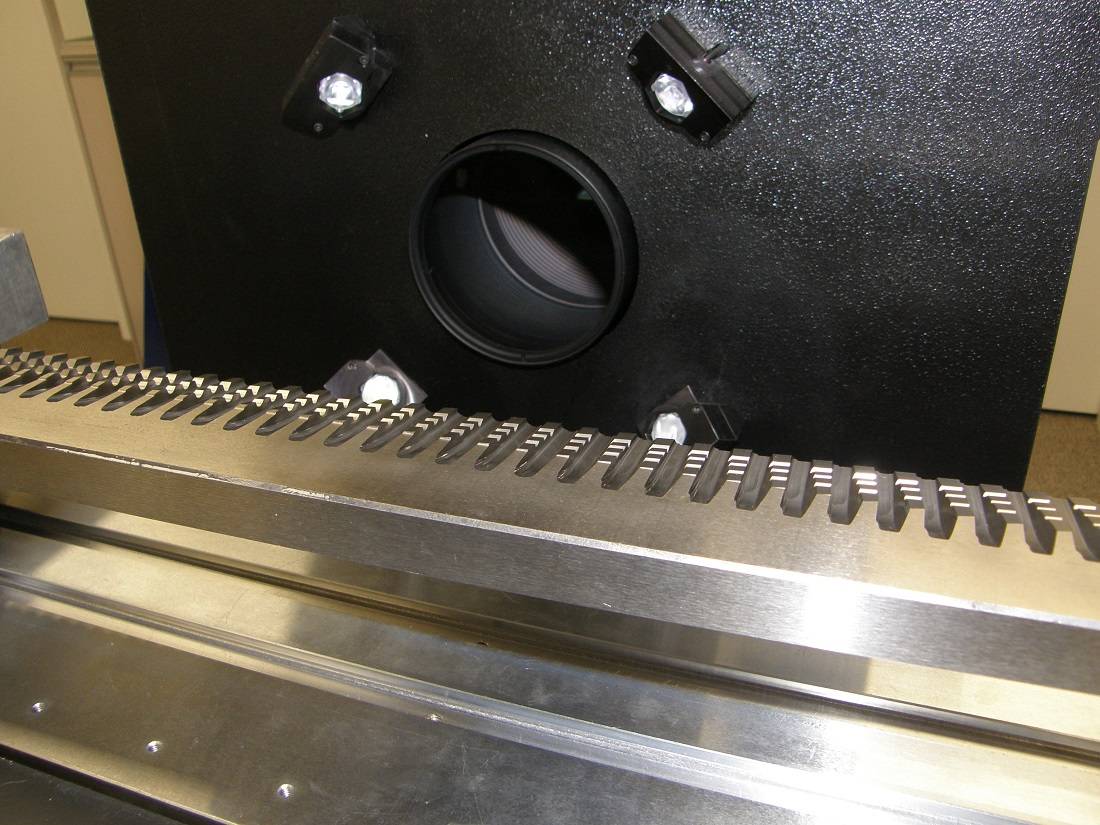

VisionGauge Digital Optical Comparator inspecting broaches

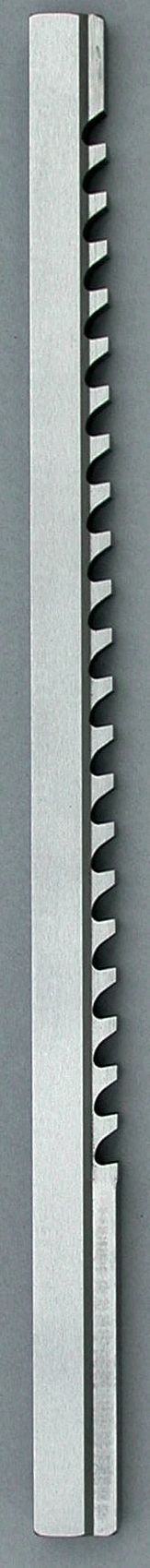

broach cutter

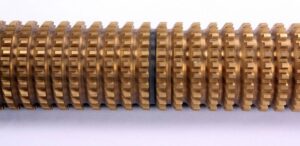

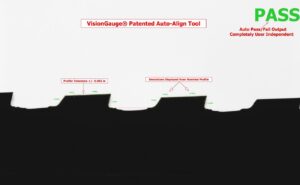

Inspection and Measurement of Broach Cutters

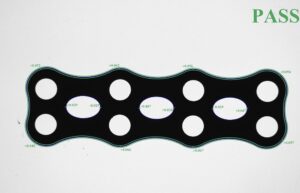

CAD Auto-Pass/Fail tolerances specified to check an orthopedic plate
VisionGauge’s CAD Auto-Pass/Fail tolerances are easy to setup along an entire part and can be paired with CAD Auto-Align control sections to quickly and easily align a part and output a single Go/No-go result for the inspection.

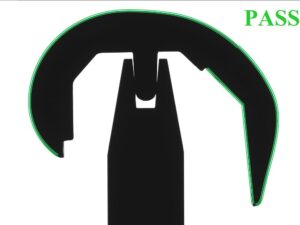

Condyle Implant CAD Auto-Pass/Fail Inspection
Specify tolerances on a part’s CAD entities to easily locate and display sections of a part that are out of tolerance. An overall Pass/Fail value result is reported based on the programmed criteria.
CAD Auto-Align and Auto-Pass/Fail on a Condyle Implant
Tolerances values can be removed to reduced screen clutter, leaving just the indicator lines and the overall Pass/Fail result for a CAD Auto-Pass/Fail inspection.
bone screw crest inspection
The VisionGauge Digital Optical Comparator’s Tooth Checker feature is capable of performing inspection and measurements on various bone screw features, including crests, roots, diameters, thread depth, and more.

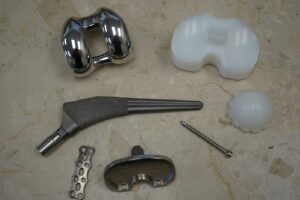

Wide range of orthopaedic implants ready for inspection

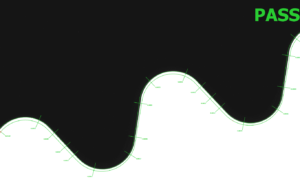

IGT Bucket Profile Inspection
Buckets represent some of the most critical parts in power generation systems. The fir tree root form profile has strict tolerance requirements that our super-extended 500 Series VisionGauge® Digital Optical Comparators are easily able to handle.
