Quickly, accurately, and easily carry out cooling holes inspection and measurement of round and shaped holes with the VisionGauge Digital Optical Comparator 700-series system. Perfect for applications in Aerospace and Power Generation (Industrial Gas Turbine Blade and engines).
Media Category: Applications
Images related to applications solved with the VisionGauge Digital Optical Comparator
Cooling Hole Measurement
EDM-drilled or Laser-drilled cooling hole measurement and inspection on the VisionGauge Digital Optical Comparator 700-Series system. Automatically verify hole presence and accurately measure hole location.
Automotive_Seal_Trim_Inspection
A pdf about Automotive Seal Trim Inspection on the VisionGauge Digital Optical Comparator
Automotive Seal Inspection

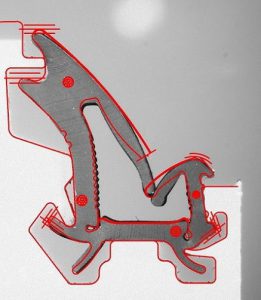

VisionGauge® Digital Optical Comparators are well-suited to the challenges of automotive seal inspection with CAD Auto-Pass/Fail and CAD Auto-Align tools.
Automotive trim inspection
Automotive trim inspection on a VisionGauge Digital Optical Comparator with CAD Auto-Align and CAD Auto-Pass/Fail tools.
Automotive components inspection
VisionGauge Digital Optical Comparators provide automatic CAD comparison and alignment tools to facilitate flexible automotive components inspection.
Flexible automotive seal measurement

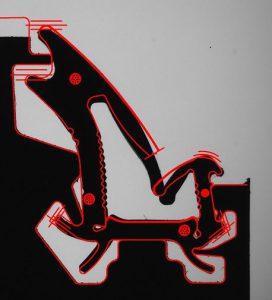

Automatically compare difficult-to-inspect flexible automotive seals against their CAD data with the VisionGauge Digital Optical Comparator, featuring CAD Auto-Pass/Fail and CAD Auto-Align technology.
Flexible automotive seal inspection

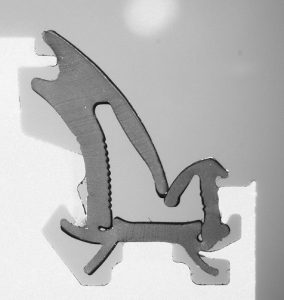

Obtain crisp and clear super-high-resolution images on the VisionGauge® Digital Optical Comparator. These systems are a perfect fit for the challenges of flexible automotive seal inspection.
automatic-alignment-turbine-blade-fir-tree
Automatic alignment of a turbine blade fir tree
rotary-stage-automatic-alignment
Rotary stage and workholding for turnkey runout measurement application.
In this case, the Min/Max tool is used to align the flats on the part perfectly horizontally, completely automatically
