VisionGauge® Digital Optical Comparators are the new standard for carrying out fast and accurate thread rolling dies measurements. Demonstrated accurate, repeatable and operator-independent results, directly on the shop floor! The system can automatically locate and check the features of interest
Media Category: Applications
Images related to applications solved with the VisionGauge Digital Optical Comparator
Thread-Rolling-Dies-Inspection

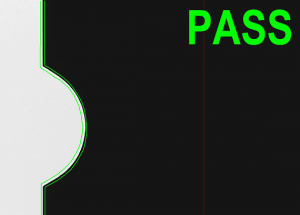

VisionGauge® Digital Optical Comparators are perfectly suited to overcome the challenges of thread rolling dies inspection. The system supports both uniform and variable tolerances. You can apply tighter tolerances in critical areas and looser tolerances elsewhere.
Thread-Rolling-Die-Measurements

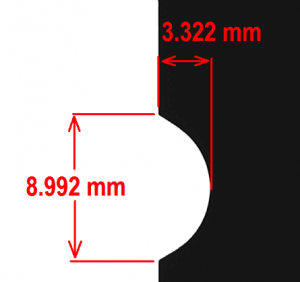

VisionGauge® Digital Optical Comparators can easily compare difficult-to-inspect thread rolling dies against their CAD data. Automatically measure and display deviations from nominal and quickly identify out-of-tolerance areas. Thread rolling die measurements made easy!
Thread-Rolling-Die-Inspection

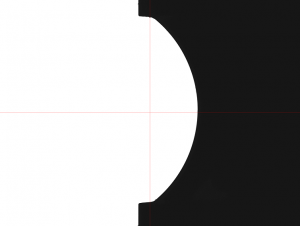

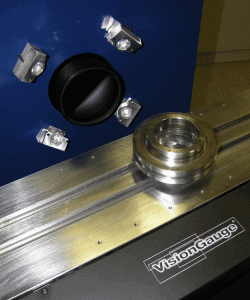

VisionGauge® Digital Optical Comparators can handle Thread Roller Die inspection and measurement with their wide variety of accurate inspection tools. No fixtures are required for this setup, and the system can correct for part-to-part placement variation. Just set down the part and run the program to complete the inspection.
Extrusions_Inspection
Applications involving the Inspection and Measurement of Extrusions
extrusion inspection

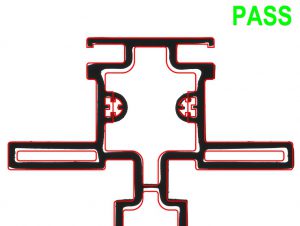

VisionGauge Digital Optical Comparators can carry-out automatic inspection and measurement of extrusions. Automatically compare a part to its CAD data and get an accurate, repeatable and operator-independent PASS/FAIL result.
extrusion measurements

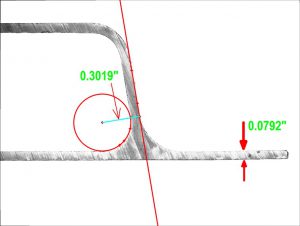

VisionGauge Digital Optical Comparators have a broad set of high-accuracy measurement tools to perform various dimensional measurements on extrusions. Measure curvatures, thicknesses, hole locations, and compare values with standard tolerances. Automatically compare a part to its CAD data to check for defects, warps, uneven thicknesses, etc., and obtain accurate, repeatable and operator-independent PASS/FAIL results.
extrusion cross section inspection

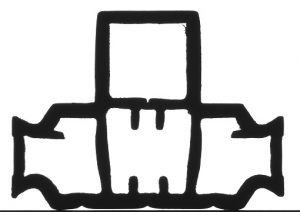

VisionGauge Digital Optical Comparators are ideal solutions for carrying out dimensional inspections and measurements of extrusions. Automatically compare a part to its CAD data and get an accurate, repeatable and operator-independent PASS/FAIL result.
EDM_Drilled_Holes_Inspection
PDF about Inspection and Measurement of EDM- and Laser-Drilled holes
EDM-drilled cooling holes inspection – Laser-drilled hole inspection
The VisionGauge® Digital Optical Comparator 700-series is widely used by manufacturers across a broad range of industries (including Aerospace and Power Generation) for the measurement and inspection of EDM- and LASER-drilled drilled holes (such as cooling holes) and slots.
