VisionGauge® Disk Inspection and Measurement Systems VisionGauge® Digital Optical Comparator Specializing in Turbine Disk Slot Inspection
The VisionGauge® Disk Inspection & Measurement System is the ideal solution for the automated high-accuracy inspection & measurement of slots in turbine disks, both large & small.
- Quickly, easily, and accurately inspect 100% of turbine disk slots (both normal and at an angle).
- 5 axes of motion (X, Y, Z, Rotary, Tilt) to properly view slots at all angles, increment from slot-to-slot, etc.
- Fully automated profile inspection
- VisionGauge® advanced high-accuracy inspection and measurement capabilities include our patented CAD Auto-Align™ and CAD Auto-Pass/Fail™ tools.
- Complete data capture, reporting, & analysis including deviations from nominal, interactive review, and much more.

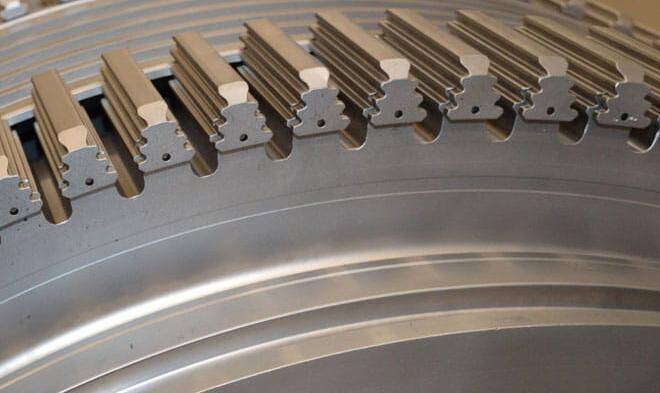

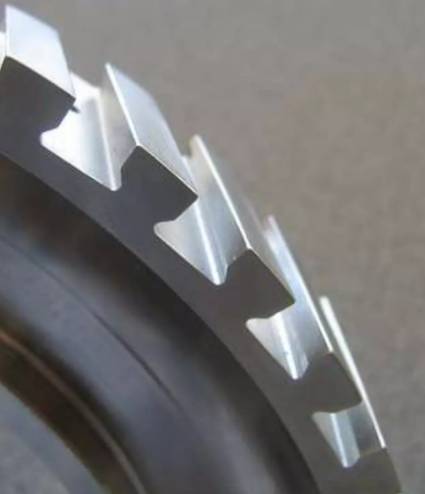

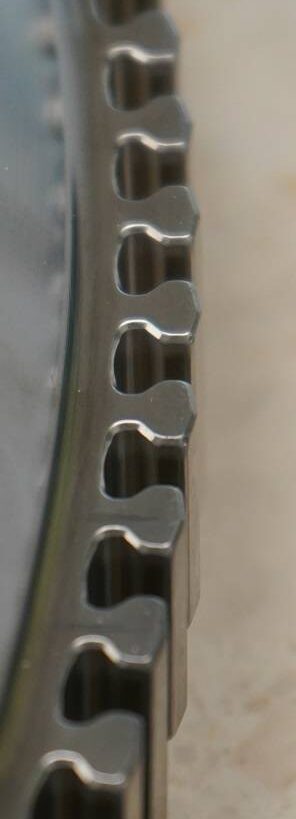

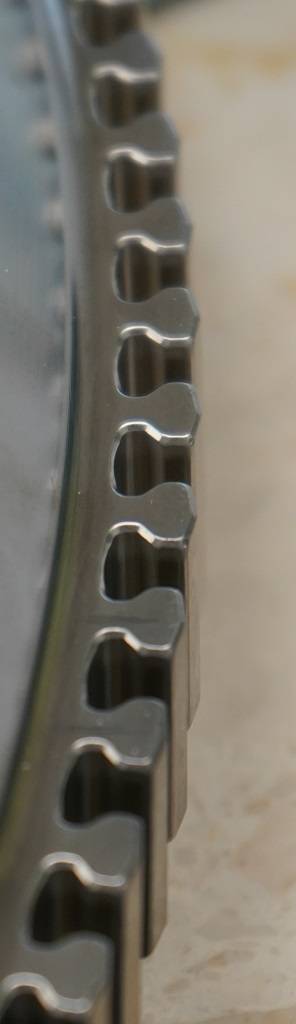

Turbine and compressor disk fir-tree slots and root forms are generally manufactured through broaching, wire cutting, or milling along with follow-up deburring and rounding operations. These features have complex geometries and very tight tolerances that are difficult to achieve. In particular, the pressure surfaces that constitute the critical point of contact between the blade roots and disc during operation are subject to very narrow tolerances in the order of 10–20 µm.

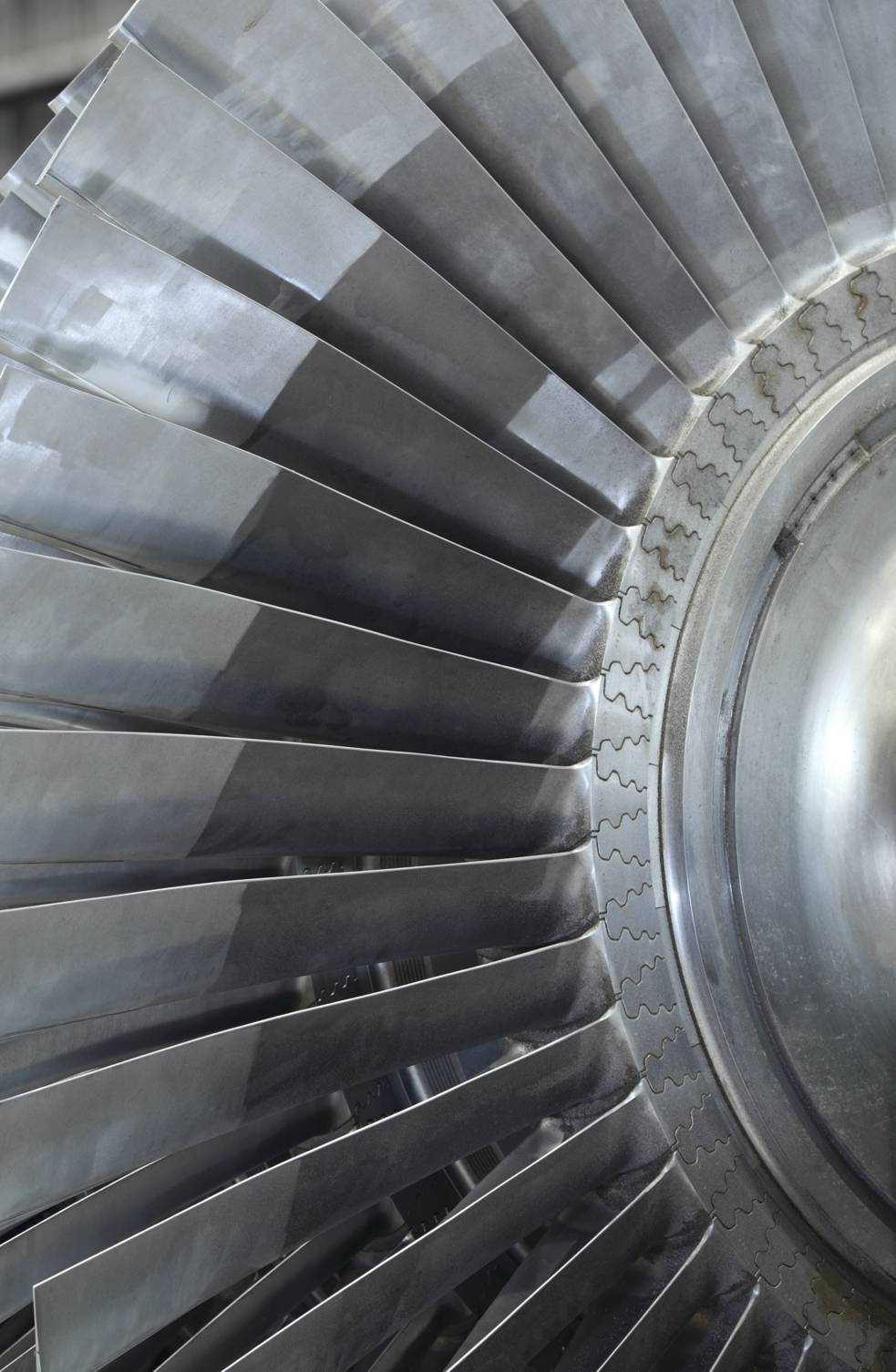

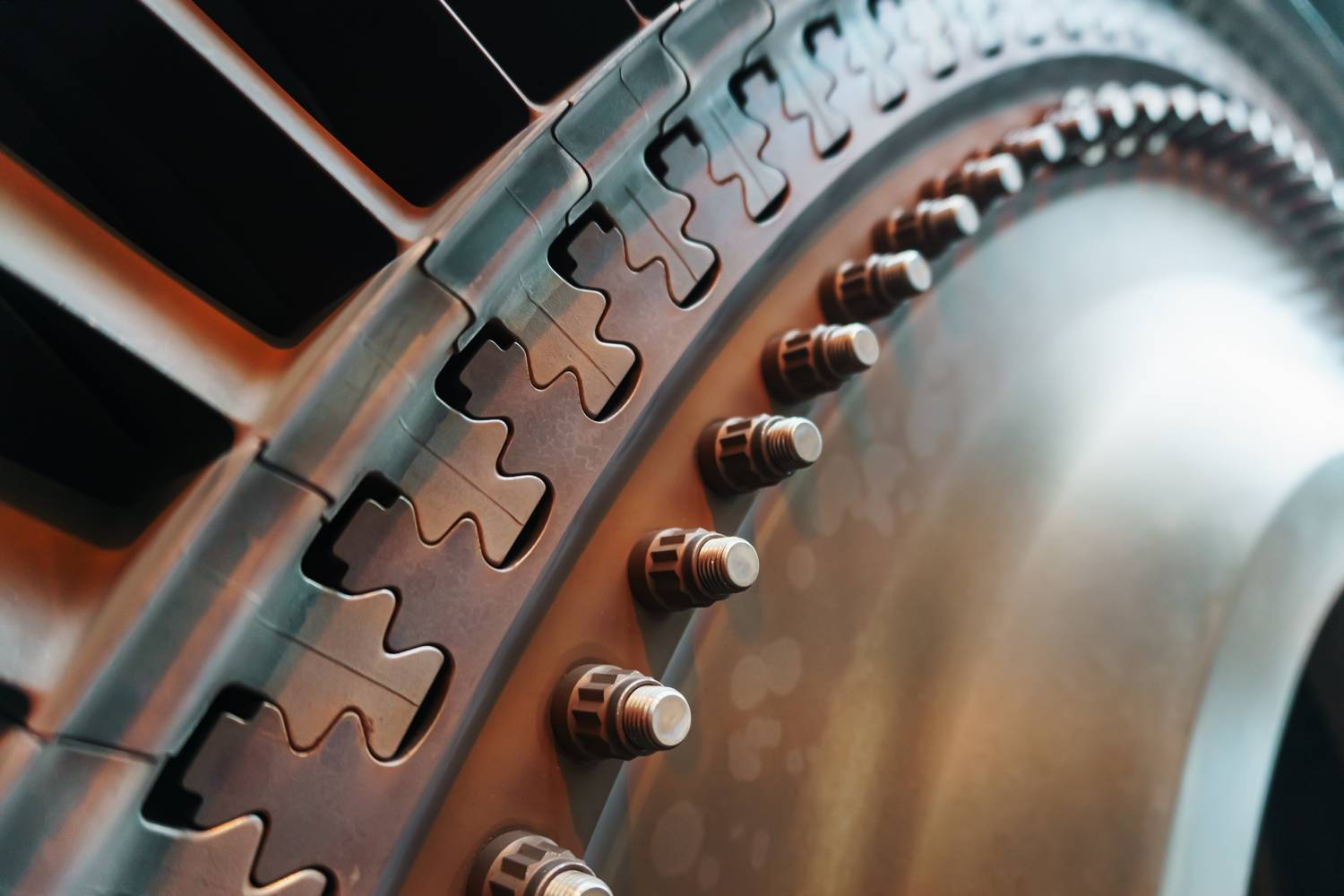

To ensure that the disk slots match up perfectly with the corresponding turbine blade shapes and provide proper performance, it is essential to accurately control the shape, position, orientation and alignment of the disk slots.
The VisionGauge® Disk Inspection & Measurement System is designed specifically for this. The system’s patented CAD Auto-Align™ and CAD Auto-Pass/Fail™ tools are unique technologies that allow the system to produce results of very high accuracy, completely automatically and with absolutely no operator dependence or subjectivity. It is fast and can carry out 100% inspection of 100% of the slots on every disk.
Some capabilities of the VisionGauge® Disk Inspection & Measurement System include:
- Fully automated profile inspection
- Completely automated knife edge setup

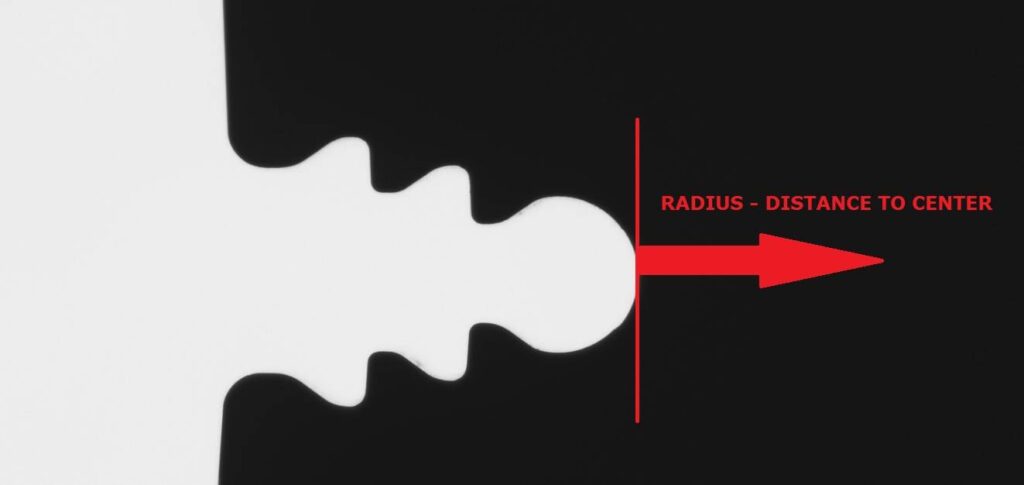

- Radial length/Z plane distance inspection
- Centerline inspection
- Slot spacing inspection
- Supports cone & helix angles
- Verification of pressure face flatness/slot perpendicularity inspection
VisionGauge® Disk Inspection & Measurement Systems can also be used to carry out complete reporting, data capture, and analysis, including:
- VisionGauge®'s powerful CAD Auto Pass/Fail™ Analysis mode makes it very easy to review non-conforming profiles. It allows the operator to automatically snap directly onto failed edge points, thus increasing efficiency when verifying out-of-spec regions.
- Data for every inspected slot is automatically registered in its respective Data Group. Additionally, results can be quickly & easily reviewed as the system automatically returns to a specific slot’s location by simply double-clicking on the corresponding Data Group entry.
- 5 axes of motion (X, Y, Z, Rotary, Tilt) to properly view slots at all angles, increment from slot-to-slot, etc.
- Fully-automated operation.
- No operator-to-operator variation
- Quickly, easily and accurately inspect 100% of a disk’s slots
- Easy to program (can use your CAD data directly!)
- Fast, accurate & easy-to-use
- Extensive set of VisionGauge® advanced high-accuracy inspection and measurement tools
- Straightforward operator interface: barcode-reader and joystick
- Intuitive software
- Patented & patent pending technology with powerful & innovative software tools
- Sharp, clear & ultra-high resolution image!
- Extended optical depth of field and extended working distance for maximum flexibility!
- Automatically create reports and collect measurements, statistics, images and other data for complete documentation
- Automatic image & data collection with built-in SPC and data-exchange capabilities
- Fast and intuitive "operator review" mode to quickly revisit out-of-tolerance areas
- High-precision movements on all axes
- High load capacity (for large & heavy disks)
- Robust shop-floor design
The system’s patented CAD Auto-Align™ & CAD Auto-Pass/Fail™ tools
allow you to automatically check the slot profile, get deviations from nominal, etc...
These very accurate tools produce results that are completely operator-independent
- High-resolution precision optics to resolve very fine details with great clarity.
- Standard systems include 12" X-axis travel, 12"/24" Y axis travel, 12" Z-axis travel with extended travels available to accommodate large disks.
- A (tilt) axis range from - 40 deg to +40 deg, B (rotary) axis range from 0 deg to +360 deg.
- All axes have closed-loop encoder feedback.
- All axes include high-accuracy preloaded crossed-roller movement.
- Includes both bi-telecentric transmitted (i.e. back) illumination and reflected (i.e. front) illumination with Ultra-bright, computer-controlled and programmable LED's.
Technical Specifications may be found in the downloadable data sheet.
